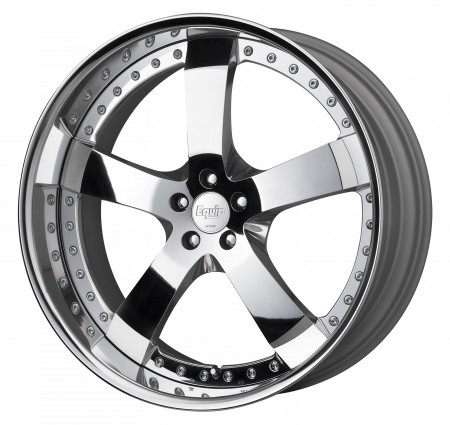

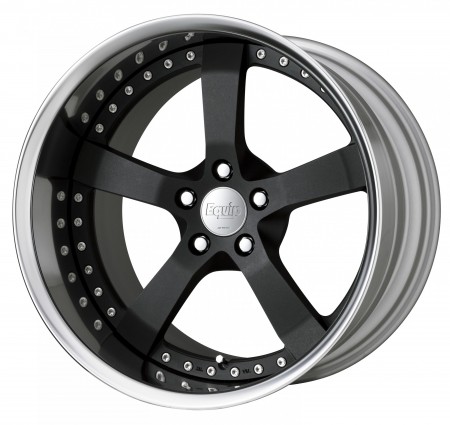

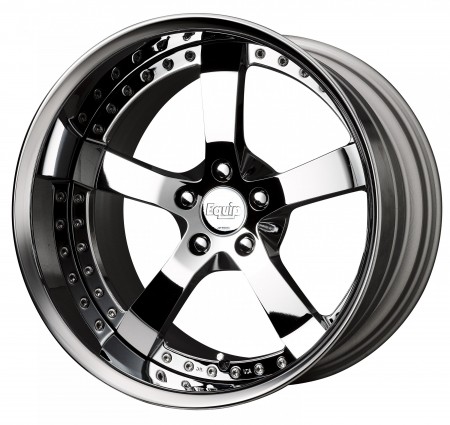

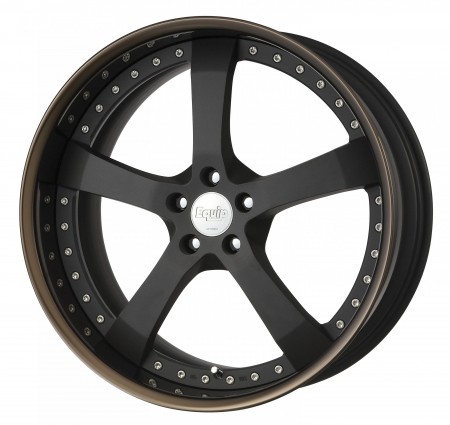

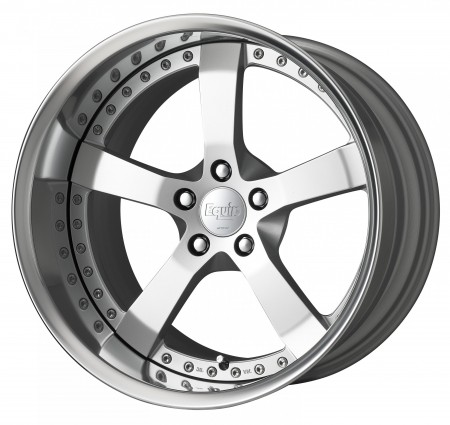

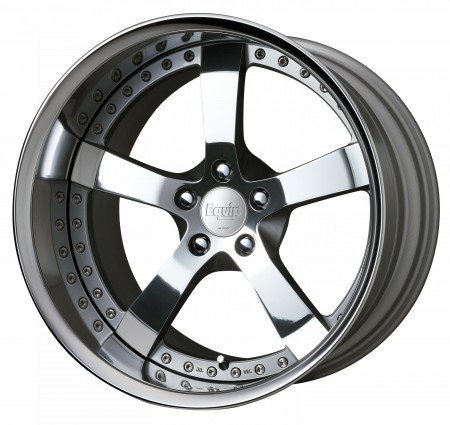

Work Wheels - Equip E05 [FORGED]


Catalogue
Sizing
19", 20", 22", 24"
19 INCH [FORGED FLAT RIM] - PCD, Width, Disk Type & Offset
PCD: 5H-108 to 120.65 [A, O, L & R disk only]

Width: 19 X 7.5 to 19 X 15.0

Disk Type:
・A disk - Standard brake clearance
・O disk - Small brake clearance with deep rim
・L disk - Big caliper brake clearance
・R disk - Big caliper brake clearance

Offset: Download PDF chart above to see options.
20 INCH [FORGED FLAT RIM] - PCD, Width, Disk Type & Offset
PCD:
5H-108 to 120.65 [R disk only]
5H-108 to 130 [A & O disk only]

Width: 20 X 7.5 to 20 X 15.0

Disk Type:
・A disk - Standard brake clearance
・O disk - Small brake clearance with deep rim
・R disk - Big caliper brake clearance

Offset: Download PDF chart above to see options.
22 INCH [FORGED FLAT RIM] - PCD, Width, Disk Type & Offset
PCD:
5H-108 to 120.65 [R disk only]
5H-108 to 130 [A & O disk only]

Width: 22 X 8.0 to 22 X 11.5

Disk Type:
・A disk - Standard brake clearance
・O disk - Small brake clearance with deep rim
・R disk - Big caliper brake clearance

Offset: Download PDF chart above to see options.
22 INCH [FORGED FLAT RIM] - PCD, Width, Disk Type & Offset
SUV PCD: 5H-150 [A & O disk only]

Width: 22 X 8.0 to 22 X 11.5

Disk Type:
・A disk - Standard brake clearance
・O disk - Small brake clearance with deep rim

Offset: Download PDF chart above to see options.
24 INCH [FORGED FLAT RIM] - PCD, Width, Disk Type & Offset
PCD:
5H-112 to 130 [A & O disk only]
5H-112 to 150 [W disk only]

Width: 24 X 8.5 to 24 X 12.0

Disk Type:
・A disk - Standard brake clearance
・O disk - Small brake clearance with deep rim
・W disk - Small brake clearance with deep rim

Offset: Download PDF chart above to see options.
Center Disk colour options
Standard:
・Silky Rich Silver [SRS]

Premium:
・White [WHT]
・Gold [GLD]
・Platinum Gold [PG]
・AHG2 Bronze [AHG2]
・Hyper Gold [HPG]
・Light Gray Silver [LGS]
・Matt Silver [MSL]
・Gloss Silver [SIL]
・Matt Gunmetal [MGM]
・Gloss Gunmetal [GM]
・Matt Black [MBL]
・Gloss Black [BLK]

Premium:
・Super Chrome [SC] - 19 inch and 20 inch only
・Buffed Finished [BBF] - 22 inch and 24 inch only
Barrel [rim] colour options
Standard:
・Anodized inner rim with Polished anodized outer rim

Premium:
・Anodized inner rim with Brushed anodized outer rim
・Black anodized inner rim with Gloss Bronze anodized outer rim
・Black anodized inner rim with Matt Bronze anodized outer rim
・Black anodized inner rim with Gloss Black anodized outer rim
・Black anodized inner rim with Matt Black anodized outer rim
Pierce bolt [rivet] colour options
Standard:
・Chrome
・Black

Premium:
・Gold
・Titan
Included with each wheel
1 X Air Valve
1 X Centre Cap
OUTER RIM / LIP COLOUR OPTIONS
POLISHED ANODIZED
BRUSHED ANODIZED
GLOSS BLACK ANODIZED
MATT BLACK ANODIZED
GLOSS BRONZE ANODIZED
MATT BRONZE ANODIZED
CENTER DISK COLOUR OPTIONS
WHITE [WHT]
GOLD [GLD]
PLATINUM GOLD [PG]
HYPER GOLD [HPG]
AHG2 BRONZE [AHG2]
LIGHT GRAY SILVER [LGS]
GLOSS SILVER [SIL]
MATT SILVER [MSL]
GLOSS GUNMETAL [GM]
MATT GUNMETAL [MGM]
MATT BLACK [MBL]
GLOSS BLACK [BLK]
IMPORTANT NOTICE
It is the buyer's responsibility to ensure that the wheels fit the car and thorough research is strongly recommended. Brake clearance varies with each spec, pleace contact us if in doubt.
no product

We'd love to hear from you

Whether you have a question about spec, pricing, delivery estimate, or anything else, we are ready to answer all your questions.

Work hub ring made from aluminum for strength and durability.

Work hub rings are designed to fill in the gap between the hub of the car and the center bore of the wheel. Work design their wheels with a centerbore large enough to fit on most cars and therefore most wheel fitments have a gap between the hub and the centerbore.

Without hub rings the wheel may cause vibration while travelling. Therefore, to fill the gap , reduce vibration and ensure the fitment is hubcentric, we recommend using Work Wheel hub rings.

Note: Please ask for compatibility with your vehicle if you are unsure

Hub Ring is meant for Work Wheels only.
W HR 60-54: Honda with 4-100*  | Mazda with 4-100
W HR 60-56: Honda with 4-100* | Subaru with 5-100 | Subaru BRZ 5-100 | Toyota 86 5-100
W HR 73-56: Subaru with 5-114.3
W HR 73-60: Toyota with 5-114.3 | Lexus with 5-114.3
W HR 73-64: Honda with 5-114.3
W HR 73-66: Nissan with 5-114.3
W HR 73-67: Mazda with 5-114.3 | Mitsubishi with 5-114.3



Note: Hub rings are colour coded according to their size, there is no colour options for each size

* Please check which model that is compatible

Work Wheels - Hub Ring
1
6 people added to their cart
Qty: 1 set of 4
Size: 60mm-54mm
Ask for compatibility
$100 inc. GST
Postage
calculator
READY STOCK NOW
Warehouse: SYDNEY
Delivery insurance included
SKU: W HR 60-54
2
34 people added to their cart
Qty: 1 set of 4
Size: 60mm-56mm
Ask for compatibility
$100 inc. GST
Postage
calculator
READY STOCK NOW
Warehouse: SYDNEY
Delivery insurance included
SKU: W HR 60-56
3
1 people added to their cart
Qty: 1 set of 4
Size: 60mm-57mm
$100 inc. GST
Postage
calculator
ORDER NOW from Japan
ETA is about 1/1.5 month
Delivery insurance included
SKU: W HR 60-57
4
Qty: 1 set of 4
Size: 67mm-57mm
Audi / VW only
$100 inc. GST
Postage
calculator
READY STOCK NOW
Warehouse: SYDNEY
Delivery insurance included
SKU: W HR 67-57
5
Qty: 1 set of 4
Size: 72.5mm-64mm
Ask for compatibility
$100 inc. GST
Postage
calculator
ORDER NOW from Japan
ETA is about 1/1.5 month
Delivery insurance included
SKU: W HR 72.5-64
6
20 people added to their cart
Qty: 1 set of 4
Size: 73mm-56mm
Ask for compatibility
$100 inc. GST
Postage
calculator
READY STOCK NOW
Warehouse: SYDNEY
Delivery insurance included
SKU: W HR 73-56
7
17 people added to their cart
Qty: 1 set of 4
Size: 73mm-60mm
Ask for compatibility
$100 inc. GST
Postage
calculator
READY STOCK NOW
Warehouse: SYDNEY
Delivery insurance included
SKU: W HR 73-60
8
6 people added to their cart
Qty: 1 set of 4
Size: 73mm-64mm
Ask for compatibility
$100 inc. GST
Postage
calculator
READY STOCK NOW
Warehouse: SYDNEY
Delivery insurance included
SKU: W HR 73-64
9
23 people added to their cart
Qty: 1 set of 4
Size: 73mm-66mm
Ask for compatibility
$100 inc. GST
Postage
calculator
READY STOCK NOW
Warehouse: SYDNEY
Delivery insurance included
SKU: W HR 73-66
10
6 people added to their cart
Qty: 1 set of 4
Size: 73mm-67mm
Ask for compatibility
$100 inc. GST
Postage
calculator
READY STOCK NOW
Warehouse: SYDNEY
Delivery insurance included
SKU: W HR 73-67
11
Qty: 1 set of 4
Size: 73mm-100mm
Size: 73mm-64mm
Honda S2000 only
$100 inc. GST
Postage
calculator
READY STOCK NOW
Warehouse: SYDNEY
Delivery insurance included
SKU: W HR 73-70
Need more custom spec? The products listed here are not exhaustive.
Contact us for more information.
